Product Title

Billet Toyota Ignition Coil Bracket 2JZ R35 GTR | 6061-T6 Aluminum

Description

CNC-machined 6061-T6 aluminum bracket for R35 GTR ignition coil conversion on 2JZ-GTE and 2JZ-GE engines. Factory-direct supply ensuring absolute alignment and heat dissipation for high-horsepower builds.

Product Overview

Converting a high-boost 2JZ engine to VR38DETT smart coils is standard practice to resolve high-RPM spark blowout. This CNC Billet 6061-T6 Aluminum Conversion Bracket provides a rigid, direct-bolt mounting solution. It ensures precise coil alignment, maximum spark energy transfer, and zero vibration-induced misfires under extreme cylinder pressures. Upgrading to a dedicated Toyota Ignition Coil Bracket 2JZ R35 GTR guarantees structural stability across the entire RPM band.

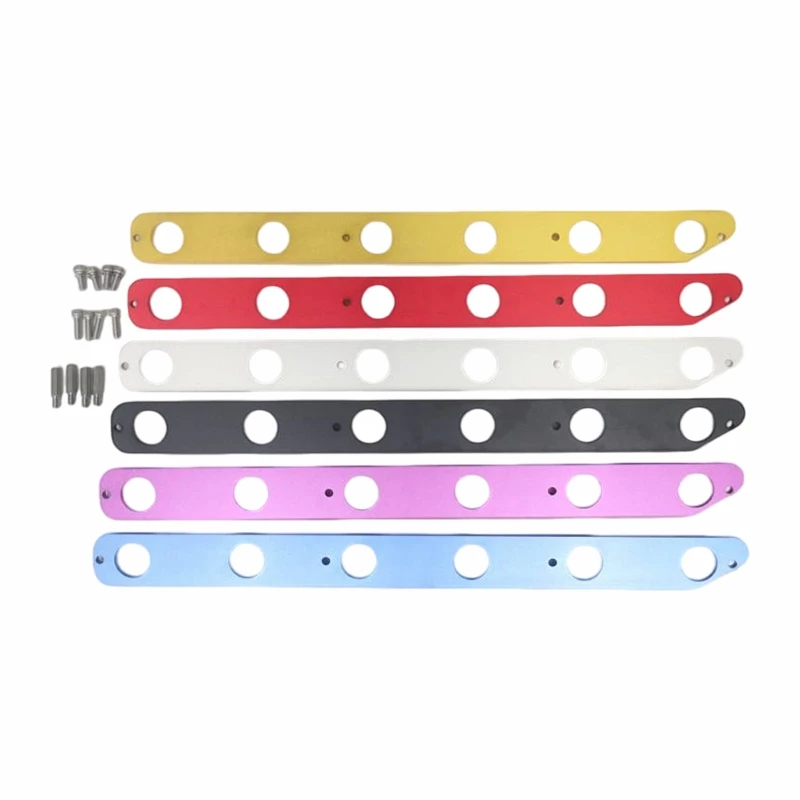

china Toyota Ignition Coil Bracket 2JZ R35 GTR

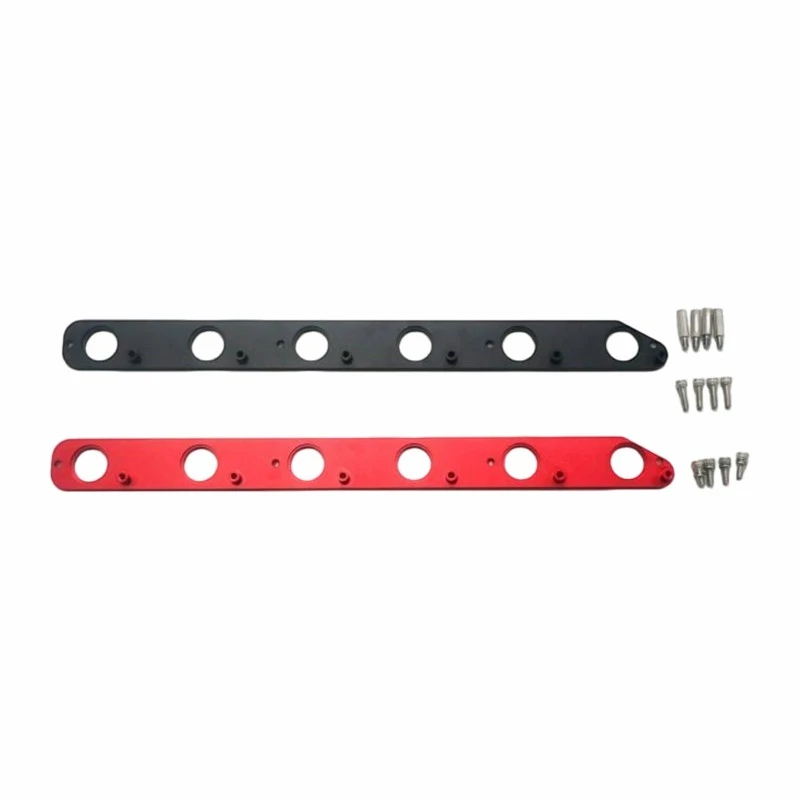

Toyota Ignition Coil Bracket 2JZ R35 GTR manufacturer

Key Technical Specifications

Base Material	Aerospace-grade 6061-T6 Billet Aluminum.
Surface Finish	Type II Hard Anodized (Mil-Spec 8625) for chemical and thermal resistance.
Tolerance Control	Mounting points and coil bores machined to within ±0.01mm.
Hardware	Supplied with M6x1.0 high-tensile stainless steel hex bolts.
Weight	245g (Structural webbing optimized for maximum rigidity without excess mass).

Thermal Management & Harmonic Dampening

Relying on custom-fabricated or poorly toleranced plates for coil conversions often leads to grounding issues and coil pack vibration, directly impacting spark duration under high load. As a professional Toyota 2JZ ignition coil bracket manufacturer, we engineered this billet plate to act as a unified heat sink and rigid anchor. The 6061-T6 aluminium design aggressively distributes radiating cylinder head heat away from the delicate R35 coil electronics, preventing thermal damage, in contrast to thin steel brackets. We also utilize integrated elastomer dampening pads to absorb high-frequency valvetrain harmonics and prevent hardware backing out.

Manufacturing & Wholesale Logistics

For tuning shops, engine builders, and global distributors sourcing an aftermarket Toyota Ignition Coil Bracket 2JZ R35 GTR, RCH Precision Machinery offers reliable batch consistency and direct technical support. Operating as a specialized China 2JZ coil bracket for R35 GTR ignition coils facility with 20 years of machining expertise, we provide exact dimensional repeatability across high-volume container shipments. This eliminates the fitment variances and rework time commonly associated with lower-tier components. We fully support B2B OEM/ODM requirements, including custom anodized colors and laser-etched private labeling.

Vehicle Fitment & Compatibility

Engineered for drop-in installation on the following platforms utilizing a 2JZ cylinder head and Nissan VR38DETT ignition coils:

Engines: 2JZ-GTE (Non-VVTi & VVTi) / 2JZ-GE (Non-VVTi & VVTi)
Toyota Supra: JZA80 (1993–2002)
Toyota Aristo: JZS147 / JZS161
Lexus: IS300 / GS300 / SC300
Toyota Chaser / Mark II / Cresta: (JZX90 / JZX100 equipped with 2JZ swaps)

What's in the Box

1x Billet 6061-T6 Aluminum Coil Bracket
1x Complete Set of M6 Stainless Steel Mounting Hardware
3x Billet Aluminum Stand-off Spacers
Note: R35 GTR Ignition coils, spark plug boots, and wiring harnesses are not included.
